OPTICAL

• Light Source: Osram Sirius 330 W X8 lamp, 8000 K, 1,500 hours life expectancy
• Color Temperature (at full): 6655 K
• Beam Angle: 3° to 10° (Spot mode)
• Field Angle: 5° to 19° (Spot mode)
• Zoom Angle (Spot mode): 5° to 19°
• Beam Angle: 1° to 4.5° (Beam mode)
• Field Angle: 2.5° to 8° (Beam mode)
• Zoom Angle (Beam mode): 2.5° to 8°
• Beam Angle: 10° to 20° (Wash mode)
• Field Angle: 18° to 38° (Wash mode)
• Zoom Angle (Wash mode): 18° to 38°
• Lumens – Source: 12,500
• Lumens – Output: 9,500
•  (5°): 112,200 lux @ 5 m Illuminance
• (18°): 5,120 lux @ 5 m Illuminance
• (19°): 8,230 lux @ 5 m Illuminance
• (38°): 925 lux @ 5 m Illuminance
• (2.5°): 111,000 lux @ 15 m Illuminance
• (8°): 7,320 lux @ 15 m Illuminance

DYNAMIC EFFECTS

• Pan and Tilt: 540°/260°
• Pan and Tilt Ranges: 180°, 360°, 540°pan/90°, 180°, 260° tilt
• Colors: 13 + white, split colors, continuous scroll at variable speeds
• Gobos (1): 13 + open (13 metal), continuous scroll at variable speeds
• Gobos (2): 9 + open (9 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 2 (rotating glass): 15.6 mm (outside), 13.4 mm (image), 1.1 mm (max. thickness)
• Dimmer: Motorized
• Shutter/Strobe: Motorized
• Zoom: Motorized
• Focus: Motorized
• Frost: Motorized
• Prism (1): 6 Facets, motorized, rotating
• Prism (2): 8 Facets, motorized, rotating
• Move in Black: Yes
• Dim Modes: 2

CONSTRUCTION / PHYSICAL

• Dimensions: 16.1 x 12.9 x 25.8 in (409 x 327 x 638 mm)
• Weight: 55.2 lb (25.1 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

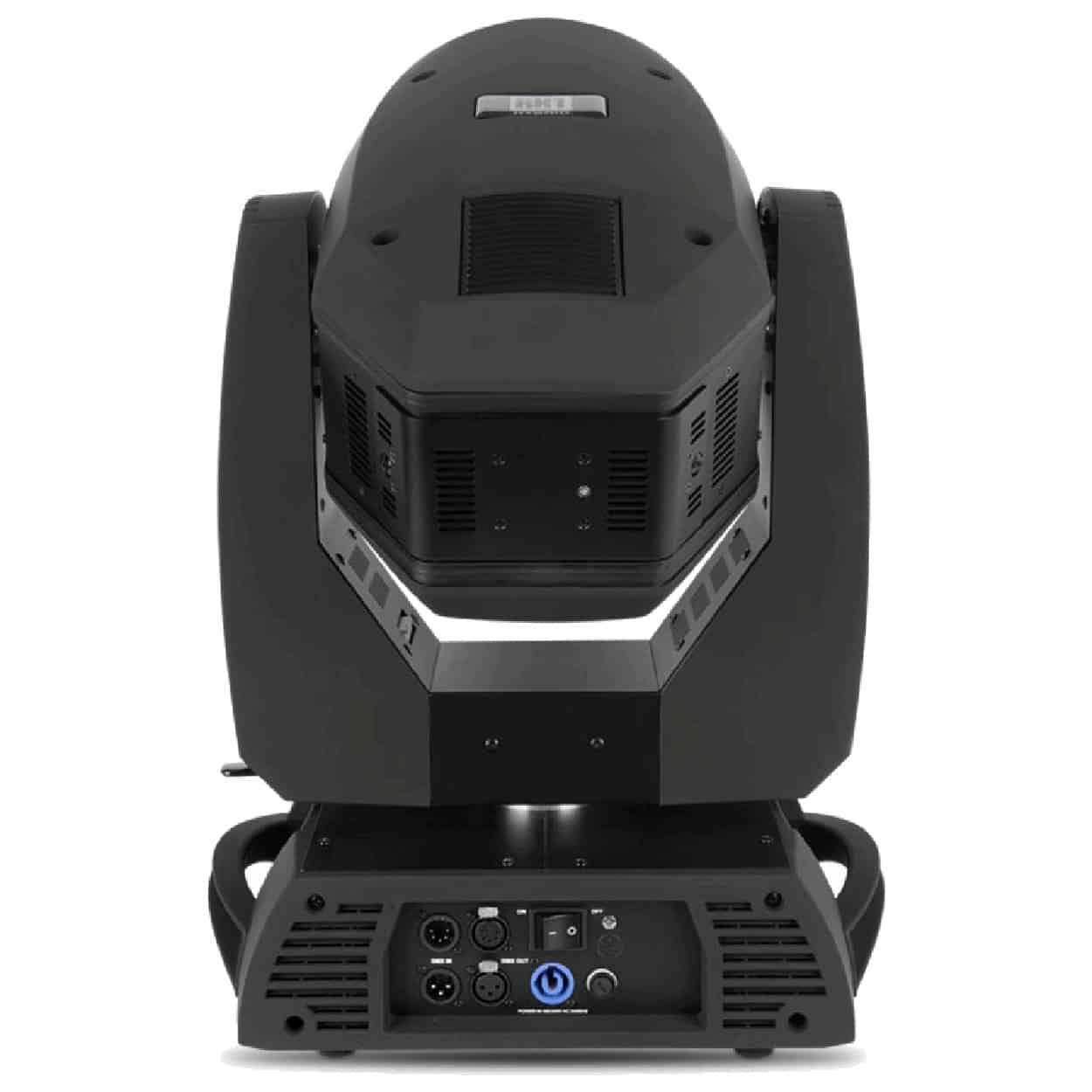

CONNECTIONS

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: DMX
• DMX Channels: 20 or 25
• Modes/Personalities: 2 personalities
• Software Update facility

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 522 W, 2.30 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET
• IP Rating: IP20, dry location

WHAT’S INCLUDED

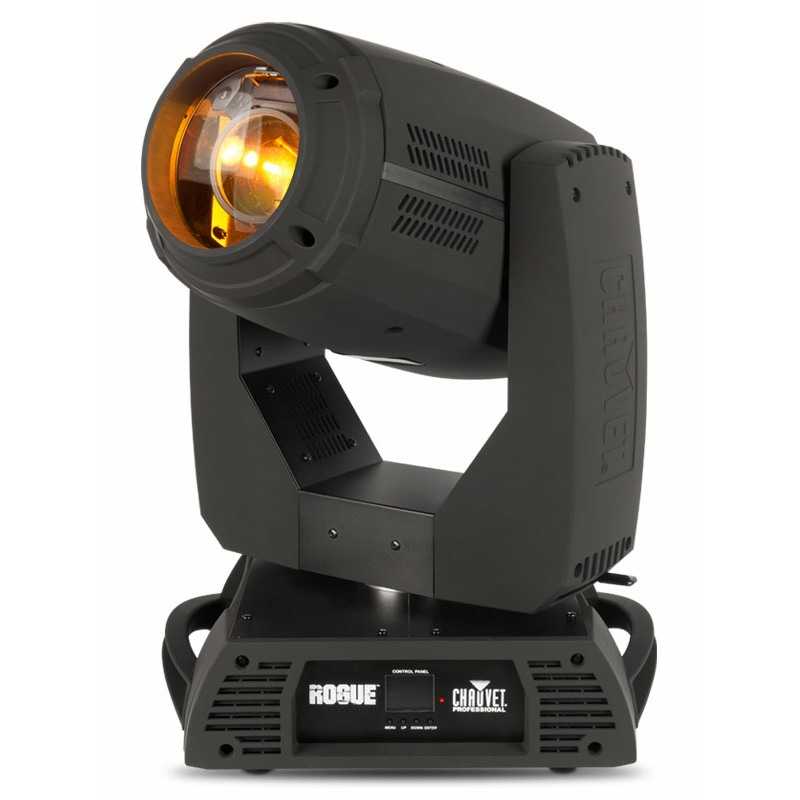

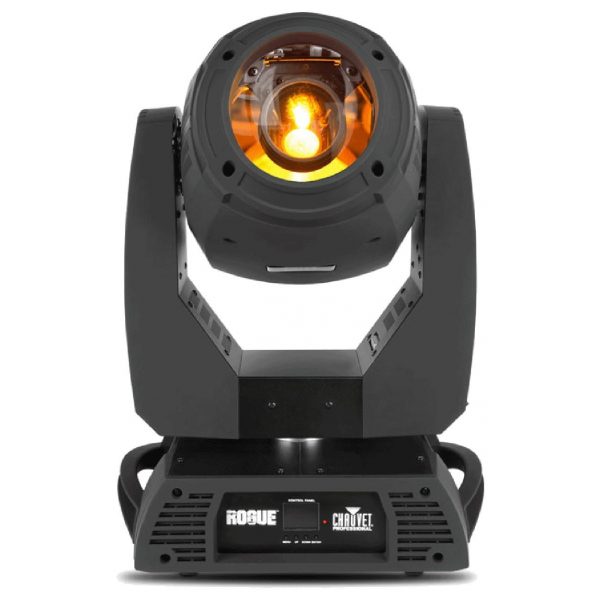

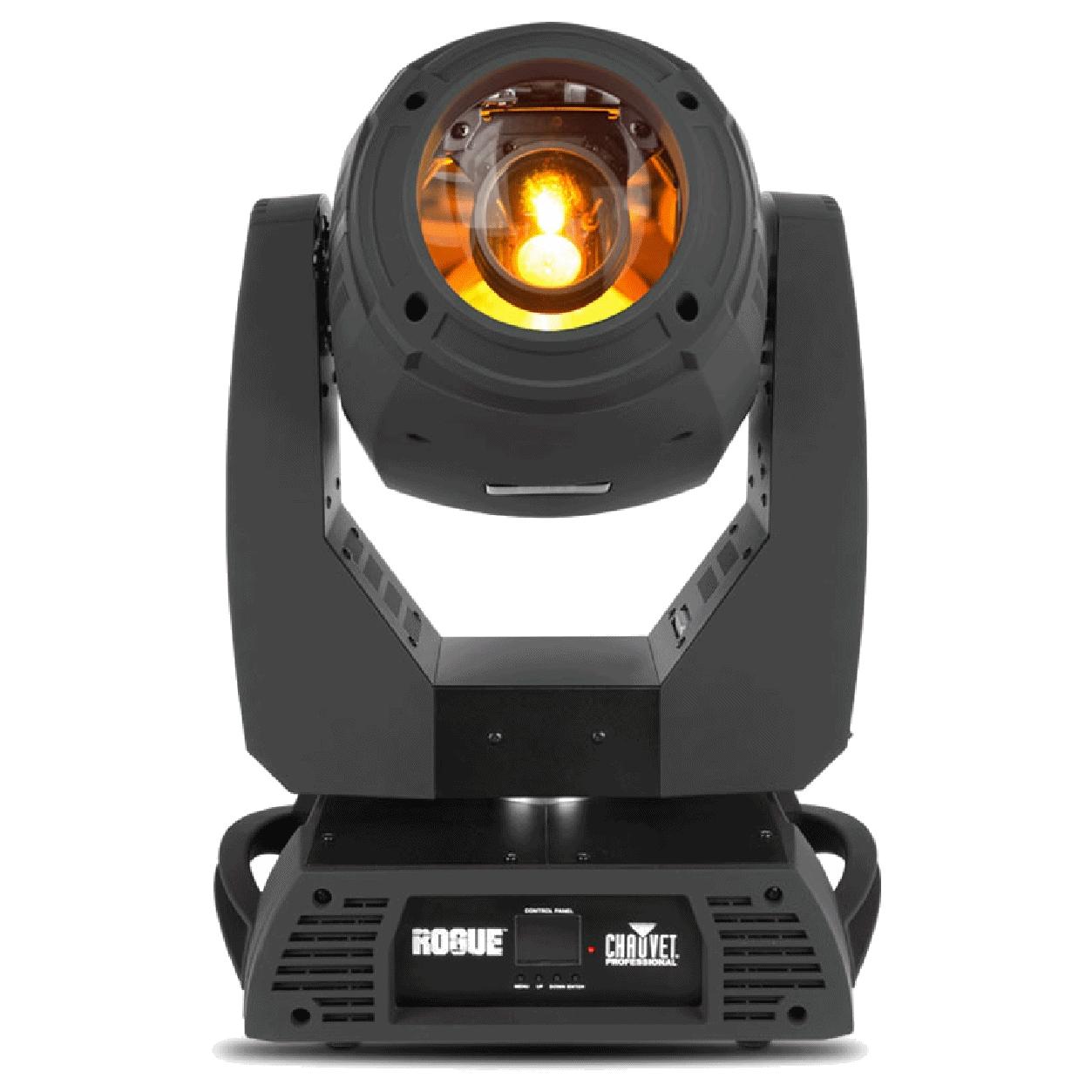

• Rogue RH1 Hybrid
• Neutrik powerCON power cord
• 2 Omega brackets with mounting hardware

CHAUVET ROGUE RH1 OPTIONAL ACCESSORIES

• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• Neutrik powerCON cables
• DMX Cables
• 330X8 Osram Sirius Lamp
• Flight case: CP2CASERH1
